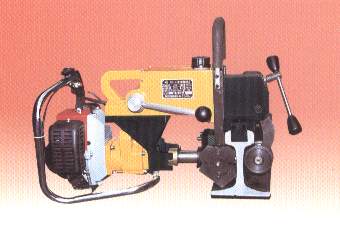

NZG-31 II Petrol engine driven rail drilling machine

NZG-31 II Petrol engine driven rail drilling machine

This drilling machine is an essential tool for the mainrenance and construction divisions of railway to maintain,construct and make urgent repair on track.It uses hollow drilling bit and drills fast,positions accurately,operates easily,gets on and off rail quickly and is used safely.It is your best choice.

Specification
  1. Power:Petrol engine
  2. Max output power:1.47kW/7000r/min.
  3. Fuel consumption: 585g/kWh
  4. Drilling Diameter:9.8/23/31(mm)
  5. Rotation rate of shaft:185r/min
  6. Drilling bit:hollow drilling bit with four bit tools
  7. Cutting consumption for drilling a hole:≤0.5L
  8. Drilling accuracy:diameter tolerance±0.5mm
  9. Tolerance of central position for drilling Φ2mm
  10. Drilling time:the time drilling a hole is not more than 30 seconds
  11. Dead weight:23kg
  12. Configuretion size:800×340×350(mm)
Operated by one person,light and flxible
