DMG-2.2 Type Motor-driven Rail Profile Grinding Maihine
DMG-2.2 Type Motor-driven Rail Profile Grinding Maihine

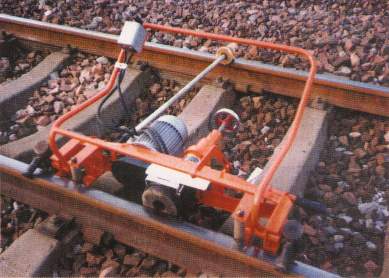

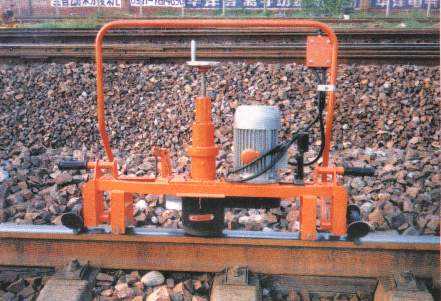

The DME-2.2 Type motor-driven rail grinding machine is a new type profile rail grinder for the grinding of rail surface,flank and arc,which is suitable to grind the rail welds,uneven joint,rail lip and patch weld of rail surfase.Featured by high grinding efficiency,good surface quality,convenient operation and easy ontrack and off-frack handle,it is a necessary tool for railway maintenance and rescue operation.

Main Specifications

  1. Motor:2.2kW,2800r/min
  2. Grinding stone type:N150×75×55,Rotatr speed is 30m/s
  3. Rotate speed of grinding head:2800r/min
  4. Grinding stone travel:65mm
  5. Dimensions:1200×300×800mm
  6. Weight:81kg
  7. Application range:43~75 kg/m rail
